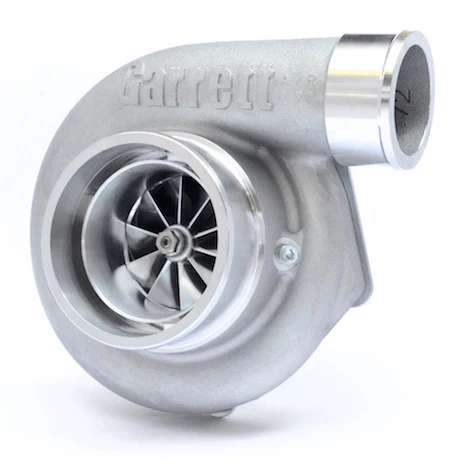

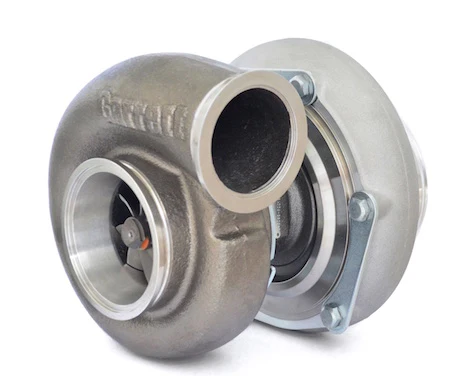

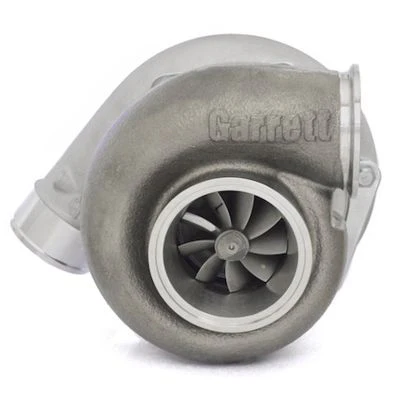

Gen2 GTX3584RS w/ Garrett turbine V-band hsg, 1.01 A/R, Comp Hose Connection GRT-TBO-B97

Gen2 GTX3584RS w/ Garrett turbine V-band hsg, 1.01 A/R, Comp Hose Connection GRT-TBO-B97

Product Description:
    Gen2 GTX3584RS with a Garrett turbine v-band housing, 1.01 A/R. Configured with a compressor outlet hose connection.
    • Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
    • Ultra high flow "RS" blade profile turbine wheel
    • Dual ball bearing CHRA rotating assembly
    • Compact package capable of 1,000 HP
Product Specifications:
  • Compressor Wheel Inducer: 67 mm
  • Compressor Wheel Exducer: 84 mm
  • Compressor Wheel Trim: 64
  • Compressor Housing: T04S Frame with a 4" inlet and 2.5" outlet w/ Anti-Surge
  • Turbine Wheel Inducer: 68 mm
  • Turbine Wheel Exducer: 62 mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: 1.01 A/R with v-band Inlet/Outlet

INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

    •

  • V-Band Inlet Clamp: CLA-047
  • 3 Inch GT V-Band Clamp: CLA-048
  • GT 3" V-Band Outlet Flange (for Downpipe): FLS-246
  • V-Band Inlet Flange (for Turbo Manifold): FLS-191

    • NOTE: Alternate coolant and oil fittings and flanges are available.

    Compressor & Turbine Maps:



    $940.25

    Original: $3,134.16

    -70%
    Gen2 GTX3584RS w/ Garrett turbine V-band hsg, 1.01 A/R, Comp Hose Connection GRT-TBO-B97—

    $3,134.16

    $940.25

    Product Information

    Shipping & Returns

    Description

    Product Description:
      Gen2 GTX3584RS with a Garrett turbine v-band housing, 1.01 A/R. Configured with a compressor outlet hose connection.
      • Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
      • Ultra high flow "RS" blade profile turbine wheel
      • Dual ball bearing CHRA rotating assembly
      • Compact package capable of 1,000 HP
    Product Specifications:
    • Compressor Wheel Inducer: 67 mm
    • Compressor Wheel Exducer: 84 mm
    • Compressor Wheel Trim: 64
    • Compressor Housing: T04S Frame with a 4" inlet and 2.5" outlet w/ Anti-Surge
    • Turbine Wheel Inducer: 68 mm
    • Turbine Wheel Exducer: 62 mm
    • Turbine Wheel Trim: 84
    • Turbine Housing: 1.01 A/R with v-band Inlet/Outlet

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

    •

  • V-Band Inlet Clamp: CLA-047
  • 3 Inch GT V-Band Clamp: CLA-048
  • GT 3" V-Band Outlet Flange (for Downpipe): FLS-246
  • V-Band Inlet Flange (for Turbo Manifold): FLS-191

    • NOTE: Alternate coolant and oil fittings and flanges are available.

    Compressor & Turbine Maps:
