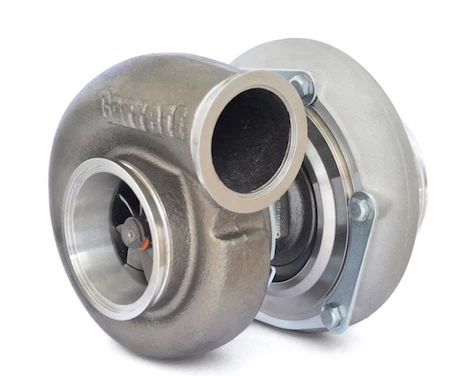

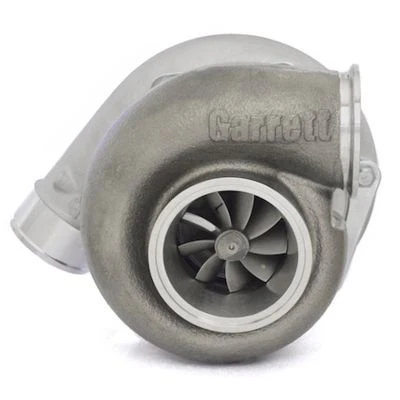

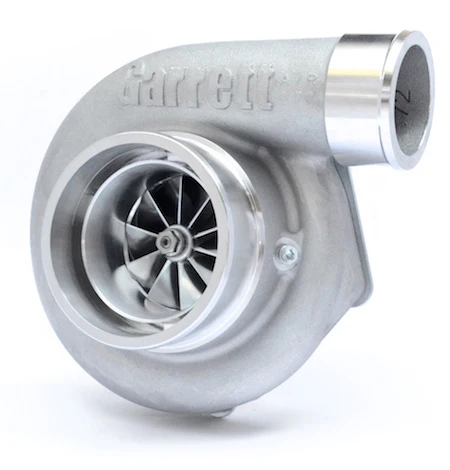

Gen2 GTX3584RS w/ Garrett turbine V-band hsg, 1.21 A/R, Comp Hose Connection GRT-TBO-B98
Product Description:
Coolant - Water Options (*Please call for assistance*)
Oil feed fitting with .035" restrictor: OIL-021
Oil drain flange: FLA-010
Oil drain gasket: GSK-008
V-Band Inlet Clamp: CLA-047
3 Inch GT V-Band Clamp: CLA-048
GT 3" V-Band Outlet Flange (for Downpipe): FLS-246
V-Band Inlet Flange (for Turbo Manifold): FLS-191
- Gen2 GTX3584RS with a Garrett turbine v-band housing, 1.21 A/R. Configured with a compressor outlet hose connection.
- Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
- Ultra high flow "RS" blade profile turbine wheel
- Dual ball bearing CHRA rotating assembly
- Compact package capable of 1,000 HP
- Compressor Wheel Inducer: 67 mm
- Compressor Wheel Exducer: 84 mm
- Compressor Wheel Trim: 64
- Compressor Housing: T04S Frame with a 4" inlet and 2.5" outlet w/ Anti-Surge
- Turbine Wheel Inducer: 68 mm
- Turbine Wheel Exducer: 62 mm
- Turbine Wheel Trim: 84
- Turbine Housing: 1.21 A/R with v-band Inlet/Outlet
INSTALLATION HARDWARE:
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor & Turbine Maps:
$940.25
Original: $3,134.16
-70%Gen2 GTX3584RS w/ Garrett turbine V-band hsg, 1.21 A/R, Comp Hose Connection GRT-TBO-B98—
$3,134.16
$940.25Product Information
